Pure Sine Wave Hybrid Solar Inverter / Single Phase Hybrid Pv Inverter 3KVA JNF3KLF 115V/230V

Name: Pure Sine Wave Hybrid Solar Inverter Single Phase Hybrid Pv Inverter 3KVA JNF3KLF 115V230V
Brand: JNTECH
Price: 250 USD

China Pure Sine Wave Hybrid Solar Inverter / Single Phase Hybrid Pv Inverter 3KVA JNF3KLF 115V/230V wholesale

Brand Name : JNTECH

Model Number : JNF3KLF

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : USD250/Set-USD380/Set

Supply Ability : 450 Sets/ Month

Delivery Time : Within 7 working days after order confirmation

Packaging Details : Carton/ Pallet / Case

Contact Now

Hybrid Solar pure sine wave Inverter single phase 3KVA JNF3KLF 110V/230V

1. Introduction

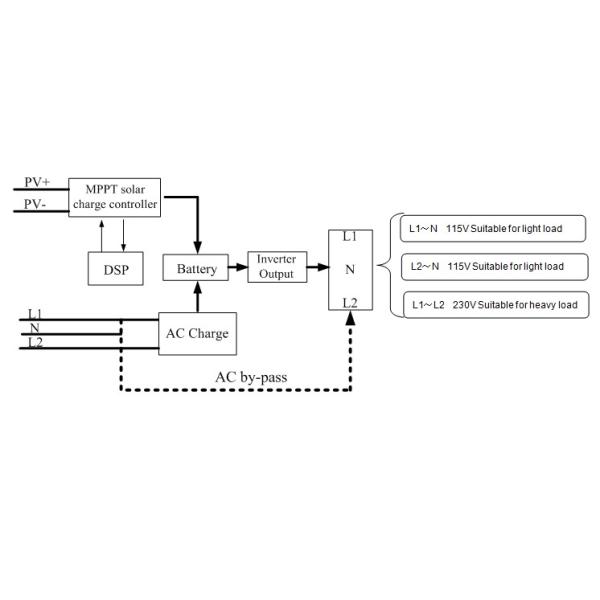

Combing functions of inverter, AC charger, solar MPPT charge controller and AC by-pass to offer uninterrupted power support with portable size. The comprehensive LCD display offers user-configurable and easy accessible button operation.

2. System features:

Overload and short circuit protetion;

Auto restart while AC is recovering;

Compatible to mains voltage or generator power.

3. 3KVA solar off-grid inverter with hybrid controller parameters

PV Input
Max. PV array input voltage	150Vdc
Recommended PV array power	3000W
MPPT voltage range	35-145Vdc
Battery
Rated voltage	48V
Rated charge current	60A
Efficiency	≥96%
Type	Gel/Lithium
Inverter Output
Rated output capacitor	5000W
Rated output power	5000W
Output voltage	230Vac(±5%) / 115 Vac(±5%)
Rated frequency	50/60Hz(±3%)
Standby loss	≤10W
Max. efficiency	90%~93%
Total harmonic distortion (THD)	<3%
Rated current	13.6A
Current peak factor	3:1
Overload	125% @rated power, 70s; 150% @rated power, 30s; 200% @rated power, 5s; 300% @rated power, 10ms
AC Input
AC input charge voltage	160~270Vac
AC input frequency	50/60Hz(±3%)
Max. charge current	20A
Grid by-pass
Switching time	<20ms
Mechanical data
Dimension	485mm365mm235mm
Weight	17kg
Other parameters
Protection level	IP20
Audible noice	<60dB
Cooling method	Force cooling
Operate temperature	-20℃~+50℃
Storage temperature	-25℃~+70℃
Status indicator	LCD+LED
Interface	RS485(optional)
Elevation	2000m (>2000m derting operate)

Battery

Gel or Lithium battery for choose.

Solar Panels

Monocrystalline; 72cells

Voc=47.88V ,Vmp=38.63V ,

Imp=9.32A , Pmax=360 Wp

connection method:

2 pieces in series, in 5 parallels;

12 Years warranty

ON-Site Projects' Pictures

Pure Sine Wave Hybrid Solar Inverter / Single Phase Hybrid Pv Inverter 3KVA JNF3KLF 115V/230V

Package

Pure Sine Wave Hybrid Solar Inverter / Single Phase Hybrid Pv Inverter 3KVA JNF3KLF 115V/230V
